Features

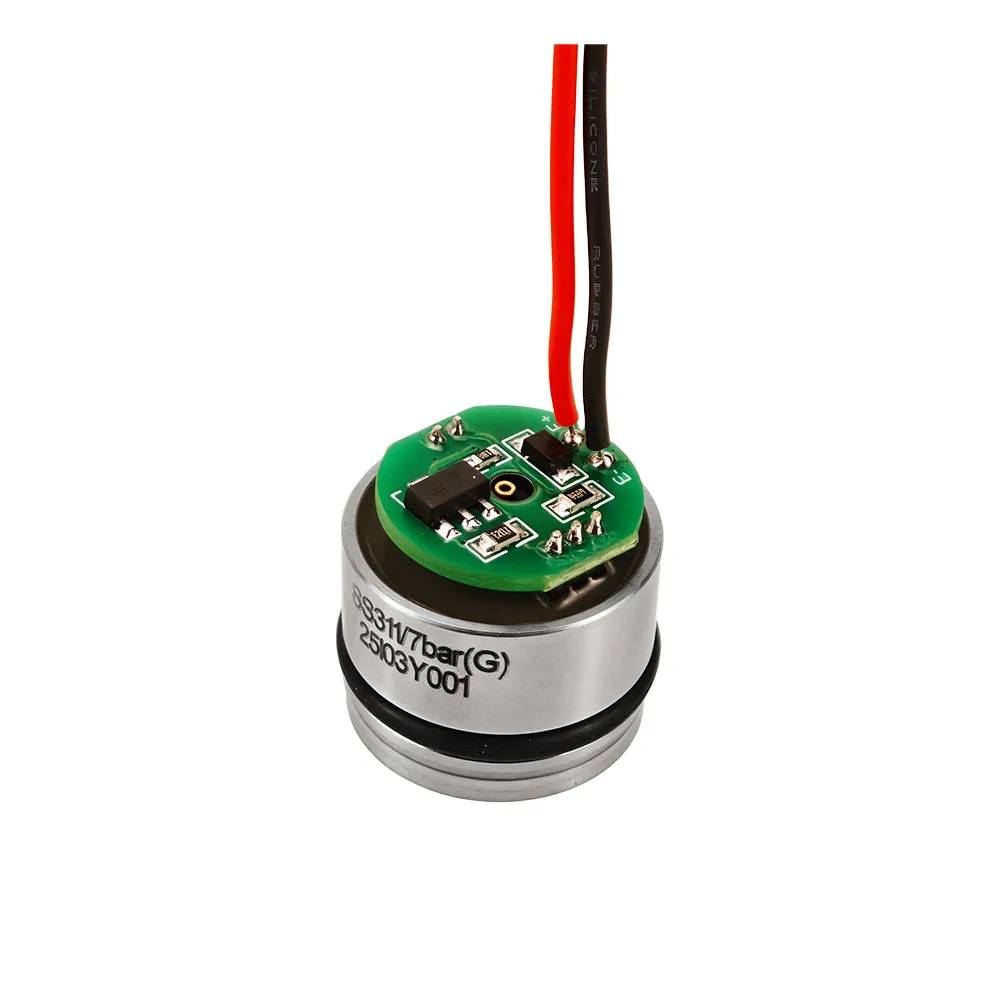

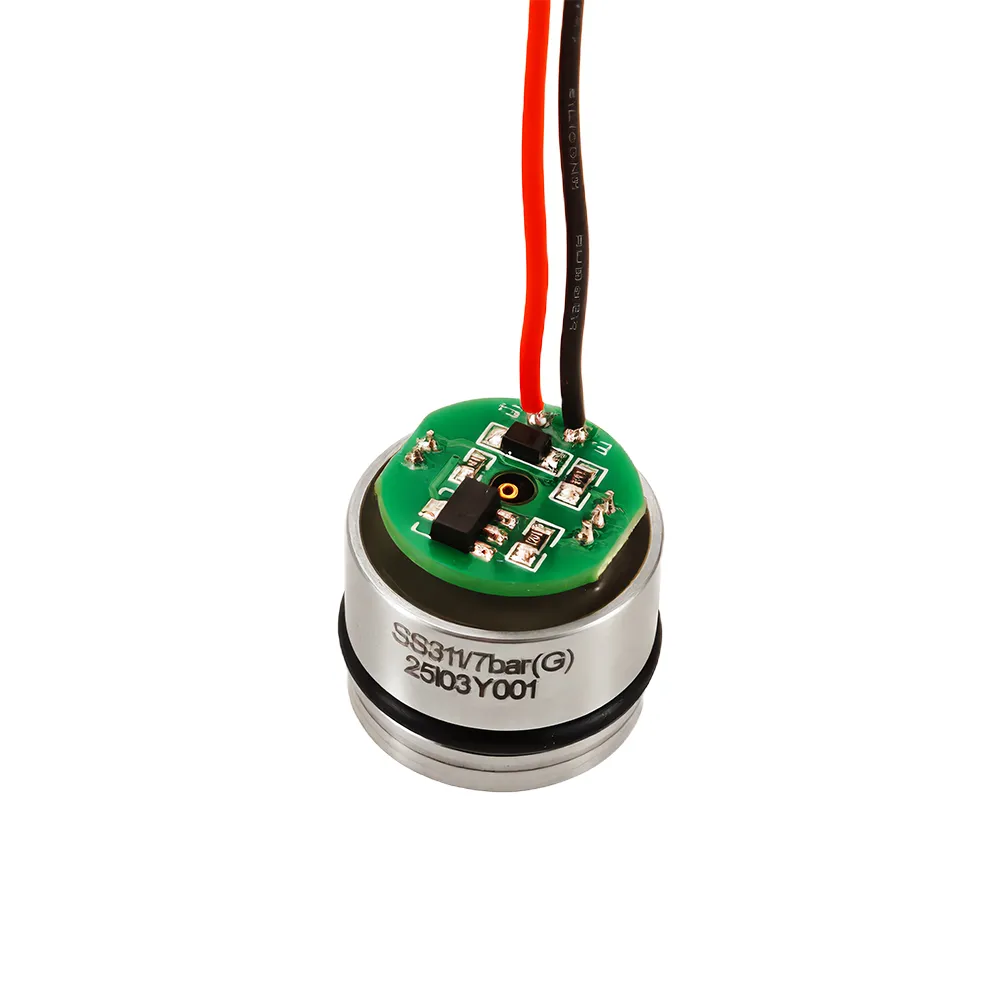

SS311 series small pressure sensor combines a piezoresistive pressure transducer with -40 to 105°C capable signal conditioning in one package. The package is compact and easy to integrate. The entire sensor is embedded within a hermetically sealed, oil-filled housing. It is highly resistant to environmental influences. OEM products can seamlessly integrate the sensor. Thus, it achieves cost savings and improves system performance.
SS311 series utilizes high-stability piezoresistive pressure transducers and innovative digital signal processing. Now, we integrate the pressure sensor and signal processor into a miniature, hermetically sealed housing no larger than was once required for the sensor only!
Parameters
Performance
| Accuracy @25°C | ± 0.5% F.S. (incl. non-linearity, hysteresis and repeatability) |
|---|---|
| Pressure range | 0 to 35 kpa up to 10 mpa |
| Pressure type | vented gauge, sealed gauge, absolute |
| Overload pressure | 2.0 × F.S. |
| Response time | < 4 ms |
| Long term stability | ≤ 0.2% F.S./Year |
| Temperature coefficient | ± 0.03% F.S./°C |
| Sensor | Silicon |
Electrical specifications
| Supply voltage | 12-30V |
|---|---|
| Output signal | 4−20mA (2 wire) |
Environmental conditions
| Medium temperature range | -20°C → +100°C |
|---|---|
| Ambient temperature range | -20°C → +80°C |
| Compensated temperature range | -10°C → +70°C |
| Insulation resistance | > 100 MΩ at 250 V |
Mechanical characteristics
| Materials | Wetted parts | Stainless steel 316L |
|---|---|---|
| Enclosure | Stainless steel 316L | |
| Weight | 20 g (depending on pressure connection and electrical connection) | |
Drawings
Dimensions
Electrical Connections
| Current output 2 wire(4-20mA) | Voltage output 3 wire(0-10V, 0-5V, 0.5-4.5V) | ||
|---|---|---|---|
 |
 |
