Features

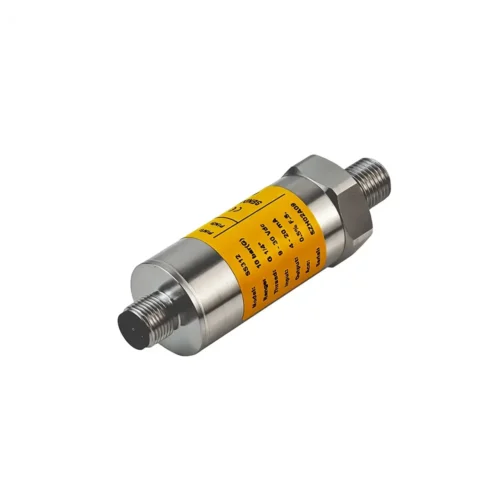

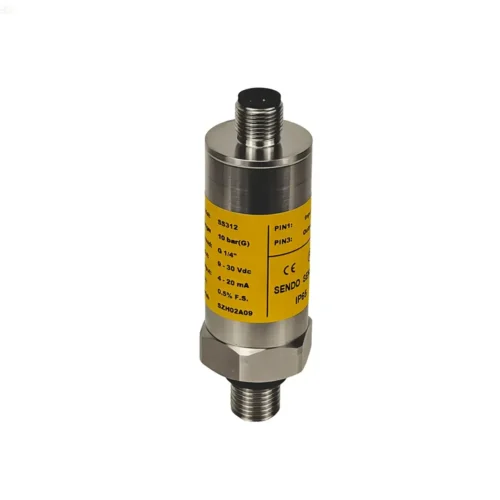

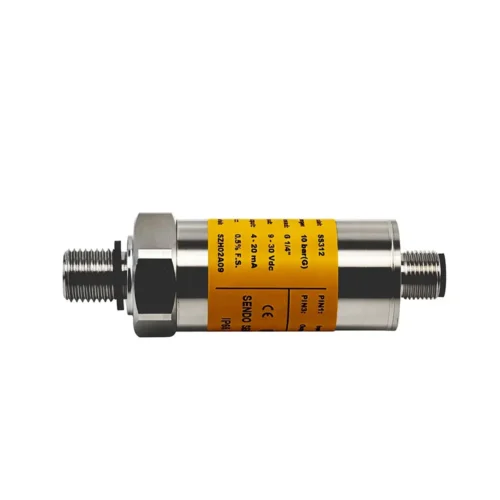

SS312 series industrial pressure transmitter is an updated version based on SS302 series. The pressure transmitter adopts a highly sensitive piezoresistive pressure transducer as the sensing part. It is assembled with a high-quality signal processing ASIC, guaranteeing high accuracy, repeatability, and long-term stability. It gives an incredibly stable signal even in high or low pressures, including vacuum. It is suitable for precision applications in industrial environments for pressures ranging from 0.1 to 1000 bar.
The pressure transmitter is made of SS316L wetted parts and has an O-ring sealed internal structure based on the combinability of different mechanical and electronic connections. We offer a variety of other pressure transmitters. They are widely used for various pressure measurement applications. The media is compatible with stainless steel 316L and Viton.
Parameters
Performance
| Accuracy @ 25 °C | ± 0.5% F.S. (incl. non-linearity, hysteresis and repeatability) |
|---|---|
| Non-linearity BFSL (conformity) | ± 0.3% F.S. |
| Hysteresis and repeatability | ± 0.1% F.S. |
| Pressure range | -1 to 0 bar, 0 to 0.1 … 1000 bar |
| Pressure type | vented gauge, sealed gauge, absolute |
| Overload pressure | 2.0 × F.S. (≤ 250 bar) |
| 1.5 × F.S. (> 250 bar) | |
| 1.2 × F.S. (1000bar) | |
| Response time | < 4 ms |
| Long term stability | ≤ 0.2% F.S./Year |
| Temperature coefficient | ± 0.03% F.S./°C |
| Sensor | Silicon |
Electrical specifications
| 4-20mA | 10%-90% | 0-5V / 0-10V | 0.5-4.5V | |
|---|---|---|---|---|
| Supply voltage | 9-30V | 5V ratiometric | 12-30V | 5Vdc |
| Polarity protected | yes | yes | yes | yes |
| Short-circuit protected | yes | yes | yes | yes |
| Zero and span adjustment | No | No | No | No |
| Surge protection | yes | yes | yes | yes |
Environmental conditions
| Medium temperature range | -20°C → +100°C |
|---|---|
| Ambient temperature range | -20°C → +80°C (depending on electrical connection) |
| Compensated temperature range | 0°C → +70°C |
| EMC – Emission | EN 61000-6-3 |
| EMC – Immunity | EN 61000-6-1 |
| Insulation resistance | > 100 MΩ at 250 V |
Mechanical characteristics
| Diaphragm | Stainless steel 316L (wetted parts) | Tantalum, Hastelloy-C is on on request | |
|---|---|---|---|
| Enclosure | Stainless steel 304 | ||
| O-ring | FKM / Viton | EPDM is on request | |
| Weight | 0.15 – 0.3 kg (depending on pressure connection and electrical connection) | ||
| Pressure connection | G 1/4″, G 1/2″, 1/4″ NPT, 1/2″ NPT, M20 × 1.5, M14 × 1.5 | Others are on request | |
| Electrical connection | DIN43650, Cable outlet, LED display, M12 × 1 | Others are on request | |
Drawings
Electrical connector and housing (Dimensions in mm)
Pressure connection (Dimensions in mm) | Contact us for more options
 |
 |
 |
 |
||||
|---|---|---|---|---|---|---|---|
| G 1/4 inch | L=16.5 mm | 1/8 in NPT | L=13 mm | G 1/8 inch | L=13 mm | G 3/4 inch | L=18.5 mm |
| G 1/2 inch | L=16.5 mm | 1/4 in NPT | L=15 mm | M 10 x 1 | L=13 mm | ||
| M 14 x 1.5 | L=16.5 mm | 1/2 in NPT | L=15 mm | 7/16-20 UNF | L=15 mm | ||
| M 20 x 1.5 | L=16.5 mm | 9/16-18 UNF | L=15 mm | ||||
Electrical Connections
