Features

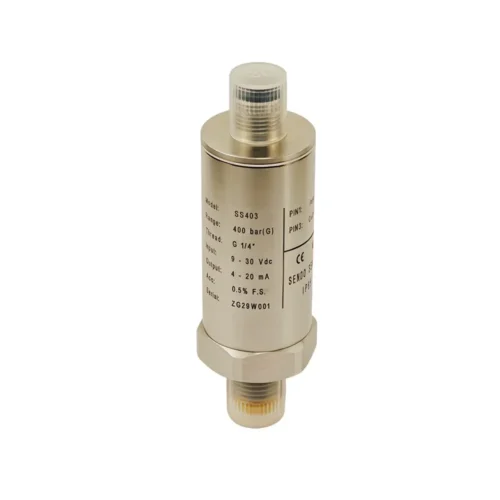

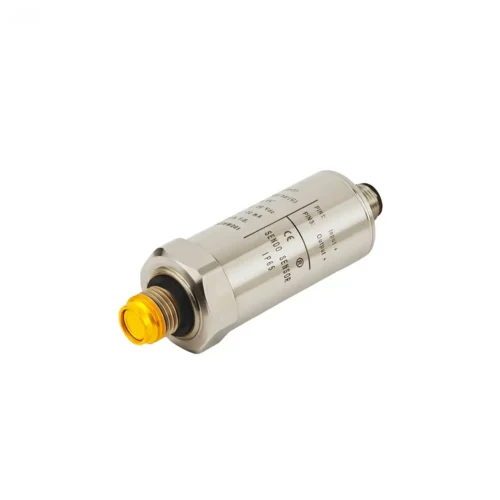

SS403 series miniature flush pressure sensor has a small-sized flush diaphragm. The sensor allows the use of a smaller size G 1/4″ (1/4″ BSP), 1/4″ NPT, or M10 x 1 male thread for fitting where there is limited room or access to the process measurement point. It is designed based on the piezoresistive technology. Stainless steel welded structure and silicone oil filled. It offers a stable and accurate output signal of 4-20 mA. You can also select 0-5 Vdc or 0-10 Vdc. The range spans from 2 bar up to 600 bar.
SS403 series features a robust stainless steel construction. It incorporates the latest piezoresistive technology together with a custom IC amplifier. SS403 series offers excellent stability and accuracy over a long service life. Typical applications include food processing, pharmaceutical, petrochemical, waste water, and slurry handling.
Parameters
Performance
| Accuracy @ 25 °C | ± 0.5% F.S. (incl. non-linearity, hysteresis and repeatability) |
|---|---|
| Non-linearity BFSL (conformity) | ± 0.3% F.S. |
| Hysteresis and repeatability | ± 0.1% F.S. |
| Pressure range | 0 to 2 … 600 bar |
| Pressure type | vented gauge, sealed gauge, absolute |
| Overload pressure | 2.0 × F.S. (≤ 250 bar) |
| 1.5 × F.S. (> 250 bar) | |
| Response time | < 4 ms |
| Long term stability | ≤ 0.2% F.S./Year |
| Temperature coefficient | ± 0.03% F.S./°C |
Electrical specifications
| 4-20mA | 10%-90% | 0-5V / 0-10V | 0.5-4.5V | |
|---|---|---|---|---|
| Supply voltage | 9-30V | 5V ratiometric | 12-30V | 5Vdc |
| Polarity protected | yes | yes | yes | yes |
| Short-circuit protected | yes | yes | yes | yes |
| Zero and span adjustment | No | No | No | No |
| Surge protection | yes | yes | yes | yes |
Environmental conditions
| Medium temperature range | -40°C → +100°C |
|---|---|
| Ambient temperature range | -20°C → +80°C (depending on electrical connection) |
| Compensated temperature range | 0°C → +70°C |
| EMC – Emission | EN 61000-6-3 |
| EMC – Immunity | EN 61000-6-1 |
| Insulation resistance | > 100 MΩ at 250 V |
Mechanical characteristics

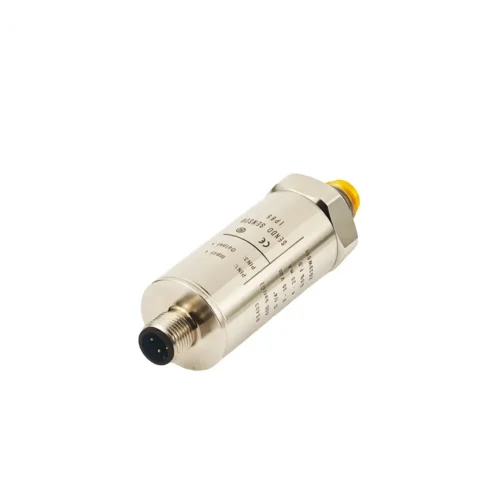

| Wetted parts | Stainless steel 316L | ||
|---|---|---|---|
| Enclosure | Stainless steel 304 | ||
| O-ring | All stainless steel welding structure, no o-ring used inside | ||
| Weight | 0.25 – 0.5 kg (depending on pressure connection and electrical connection) | ||
| Pressure connection | G 1/4″, 1/4″NPT, M10 × 1 | Others are on request | |
| Electrical connection | DIN43650, Cable outlet, LED display, M12 × 1 | Others are on request | |
Drawings
Electrical connector and housing (Dimensions in mm)
Pressure connection (Dimensions in mm) | Contact us for more options
Electrical Connections
