Home >> Product >> Industrial pressure sensor >> SS305 Piezoresistive industrial pressure transmitter

SS305 series piezoresistive industrial pressure transmitter is all ss 316L integrated structure of welded connections between pressure cell and process connection, the high burst protection design is suitable for the use in all types of severe industrial applications. The transmitter is fully calibrated and compensated for offset, sensitivity, temperature effects and non-linearity, is a precise pressure measurement solution that optimizes system performance at a competitive cost.


Pressure Ranges
0 to 1.45 ... 87 psi (gauge, absolute)
negative, positive, compound pressure
Power Supply

9-30Vdc (typical)
3V, 5V regulated, 5V ratiometric (on request)

Output Signals
4...20mA (typical)
0...5V, 0...10V, 0.5...4.5V, 1...5V (on request)
Data Sheet

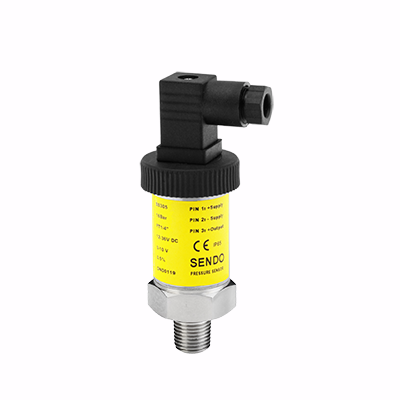

1/4 NPT connection + DIN43650A electrical connection

1/4 NPT connection + DIN43650A electrical connection

1/4 NPT connection + DIN43650C electrical connection

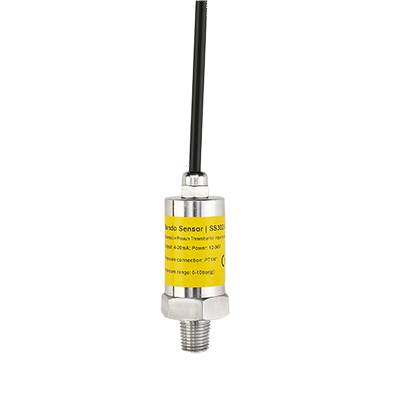

1/4 NPT connection + Cable outlet electrical connection

1/4 NPT connection + Field type electrical connection

G 1/4 connection + Plug type electrical connection
